Ul248 Energy Storage Battery Protection Fuse for EV Charger

Name: Ul248 Energy Storage Battery Protection Fuse for EV Charger
Brand: Dissmann
Price: 1 USD

Ul248 Energy Storage Battery Protection Fuse for EV Charger Manufactures

Brand Name : Dissmann

Model Number : HEV-H-Q

Certification : UL

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : TT/LC

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : Ceramic

Rated Current : 5A-800A

Rated Voltage : AC/DC500V

Breaking Capacity : AC100KA/DC50KA

Type protection : aR

Application : battery,EV charger

Related standard : UL248-20、ISO8820、JASO-D622、RoHS

Keyword : EV charger fuse

Contact Now

UL248 HEV series fuse for battery protection

Product type of the HEV fuse

Model	Rated Current	I2t(A2s)		Power dissipation	Size code	Install
Model	Rated Current	I2t(A2s)		Power dissipation	Size code	Install
HEV-H-Q-35	35A	33	145	8.5	HZ1	Mounting Bolt M8 recommended torque 11N·m
HEV-H-Q-40	40A	74	315	8
HEV-H-Q-45	45A	100	430	8
HEV-H-Q-50	50A	130	650	8.5
HEV-H-Q-60	60A	200	880	10
HEV-H-Q-70	70A	210	900	10.5	HZ2
HEV-H-Q-80	80A	300	1360	12.5
HEV-H-Q-90	90A	350	1500	15.5
HEV-H-Q-100	100A	460	1950	17.5
HEV-H-Q-125	125A	750	3430	26	HZ3
HEV-H-Q-150	150A	1000	4450	31
HEV-H-Q-175	175A	1400	6100	36
HEV-H-Q-200	200A	1800	8300	41
HEV-H-Q-225	225A	4600	23000	39	HZ4	Mounting Bolt M10 recommended torque 20N·m
HEV-H-Q-250	250A	6250	32100	41
HEV-H-Q-275	275A	7800	40000	46
HEV-H-Q-300	300A	9600	49000	52
HEV-H-Q-325	325A	13500	63000	54
HEV-H-Q-350	350A	14000	72000	59
HEV-H-Q-400	400A	18500	95500	66
HEV-H-Q-450	450A	24000	125000	75	HZ5
HEV-H-Q-500	500A	28500	147000	84
HEV-H-Q-600	600A	40500	203000	108
HEV-H-Q-700	700A	54000	295000	122	HZ6	Mounting bolt M12 recommended torque 28N·m
HEV-H-Q-800	800A	75000	406000	130	HZ6
HEV-H-Q-1000	1000A	90000	430000	146	HZ7
HEV-H-Q-1200	1200A	120000	590000	180	HZ7

Basic information of the HEV fuse

This HEV series fuse available in ratings of 5A-800A,rated voltage up to AC/DC500V,breaking capacity is AC100KA,DC50KA at AC/DC500V,type of protection is aR.The dimension and performance conform to UL248,GB13539,IEC60269.

Product characteristic of 400 amp HEV fuse

Model	Rated Current(A)	100% voltage drop (mv)	Size Code	Installation
HEV-H-Q-400	400A	279	HZ4	Install Bolt M10,
				Recommend Torque: 20N.m

Dimension of the 400 amp HEV fuse

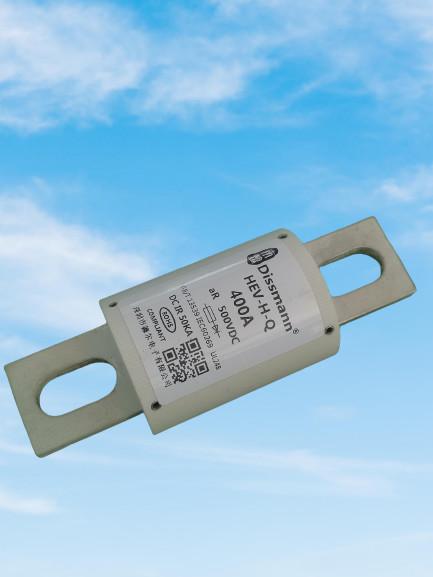

Ul248 Energy Storage Battery Protection Fuse for EV Charger

FAQ

Question:How long is your product life?

Answer:The life of a fuse is 3-5 years under normal power-on condition.
