Dissmann UL Certification Low Voltage Fuse 80VDC Applied To Energy Storage Syste

Name: Dissmann UL Certification Low Voltage Fuse 80VDC Applied To Energy Storage Syste
Brand: Dissmann
Price: 1 USD

Dissmann UL Certification Low Voltage Fuse 80VDC Applied To Energy Storage Syste Manufactures

Brand Name : Dissmann

Model Number : DNN-H-1

Certification : UL

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000000pcs

Delivery Time : 5-8 days

Packaging Details : Standard Carton Packing

Rated Voltage : AC125V/DC80V

Rated Current : 10A-500A

Protection Type : aR

Breaking Capacity : DC2700A

Meet the requirements : UL248-13, ISO8820, JASO-D622,RoHS

Type : Flat plug type automobile fuse

Contact Now

Dissmann UL Certification Fuse Low Voltage 80VDC Fuse Applied to Energy Storage Syste Fuse

Dissmann UL Certification Low Voltage Fuse 80VDC Applied To Energy Storage Syste

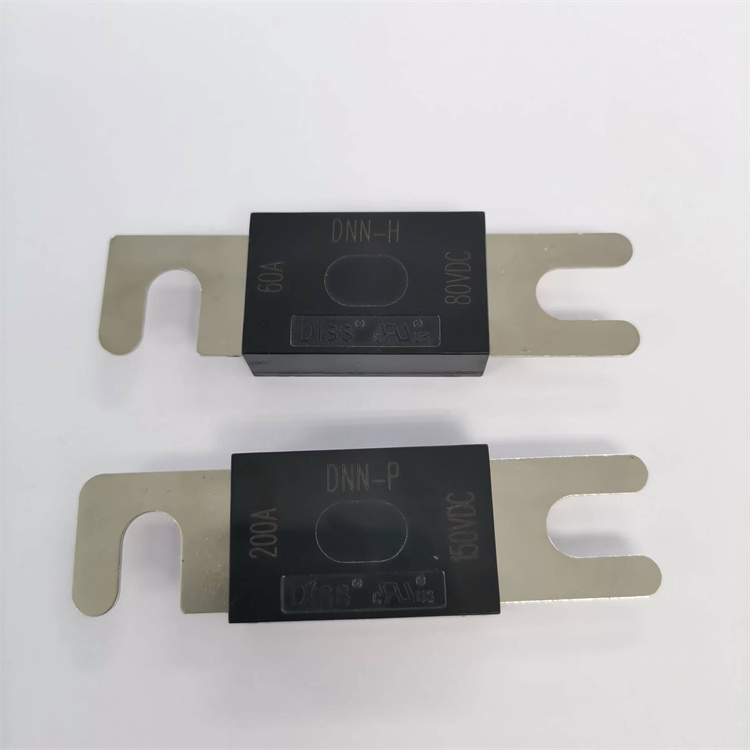

UL Certification Fuse Low Voltage 80VDC Fuse DNN-H series

Basic information of the fuse:

Type:Flat plug type automobile fuse (bolt type installation)
Dimensions and performance conforming to UL248
Rated voltage: 80VDC,
Rated current: 10A~500A,
Breaking capacity: DC2.7kA
Conform to EU and China RoHS directives
The executive standard is UL248, UL certification number: E496054
This series of products are automobile flat plug fuses, which have the characteristics of small size, low power consumption and high breaking capacity. It is applicable to low-speed electric vehicles, motors and charging modules.

1.Dimension of the fuse:

Dissmann UL Certification Low Voltage Fuse 80VDC Applied To Energy Storage Syste
Rated Current ≤275A Rated Current ≥300A

When the Rated current ≥300Ampere,the contact foot will be thicker.

2.The product type you can Choose from Dissmann Fuse:

Model	Product code	Rated current A	Voltage drop mV	Installation requirement
DNN-H	DNN-H-35	35	130	Install bolt M8, recommended torque 10N·m ±1 N·m
	DNN-H-40	40	125
	DNN-H-50	50	120
	DNN-H-60	60	116
	DNN-H-80	80	112
	DNN-H-100	100	110
	DNN-H-125	125	105
	DNN-H-130	130	100
	DNN-H-150	150	96
	DNN-H-175	175	90
	DNN-H-200	200	86
	DNN-H-225	225	83
	DNN-H-250	250	80
	DNN-H-275	275	77
	DNN-H-300	300	75
	DNN-H-325	325	83
	DNN-H-350	350	81
	DNN-H-400	400	80
	DNN-H-425	425	78
	DNN-H-450	450	78
	DNN-H-500	500	76

3.Materials of the DC80V Bolt-down fuse:

Component name	Material
Contact the foot	Copper alloy
Noumenon	Electric wood shell

4.Performance criteria of the fuse:

Load	Opening time
	10A～500A
	min	max
110%	14400	∞
160%	10	∞
200%(≤200A)	0	100
200%(＞200A)	0	300
250%(≤200A)	0	60
250%(＞200A)	0.8	120
600%	0.02	10

5.Current characteristic curve of the 80VDC fuse:
Dissmann UL Certification Low Voltage Fuse 80VDC Applied To Energy Storage Syste

6.Application of the Dissman 80VDC bolt-down fuse:

Dissmann UL Certification Low Voltage Fuse 80VDC Applied To Energy Storage Syste
