Car Battery Charger Low Voltage Fuses PBT Material 80V Rated Voltage

Name: Car Battery Charger Low Voltage Fuses PBT Material 80V Rated Voltage
Brand: Dissmann
Price: 1 USD

Car Battery Charger Low Voltage Fuses PBT Material 80V Rated Voltage Manufactures

Brand Name : Dissmann

Model Number : DFN-A

Certification : UL

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : PBT

Color : Orange/Blue/Yellow/

Rated Voltage : DC32-80V

Rated Current : 1A-40A

Breaking Capacity : DC1KA

Contact Now

Car Battery Charger Low Voltage Fuses PBT Material 80V Rated Voltage

Material:
Noumenon: PBT
Pins: Copper alloy

Product Presentation:

Rated Voltage

额定电压

32VDC

Characteristic

特性

F快断

Rated Current 额定电流

1A-40A

Breaking Capacity

分断能力

DC1000A

Meet the Requirement

符合要求

UL248,ISO8820,

欧盟和RoHS 指令

Remarks

备注

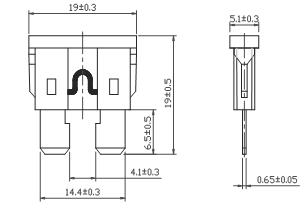

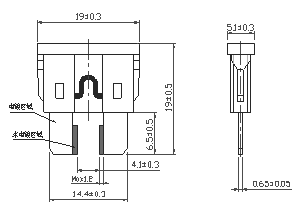

产品外形尺寸(mm)/Overall dimensions of the product(mm)

产品型号/Product type

Model 型号	Product code 产品代码	Rated current 额定电流 A	I²t (A²Sec)	Voltage drop 电压降 mV	Pigment 颜色
DFN-A	DFN-A-1	1	0.4	174	黑色(Black)
	DFN-A-2	2	1.5	140	灰色(Gray)
	DFN-A-3	3	6.3	137	浅紫色(Violet)
	DFN-A-4	4	13	135	粉红色(Pink)
	DFN-A-5	5	25	125	浅棕色(Tan)
	DFN-A-7.5	7.5	56	115	棕色(Brown)
	DFN-A-10	10	110	110	红色(Red)
	DFN-A-15	15	295	102	蓝色(Blue)
	DFN-A-20	20	480	96	黄色(Yellow)
	DFN-A-25	25	1000	90	透明色(Clear)
	DFN-A-30	30	1460	86	绿色(Green)
	DFN-A-35	35	2205	88	深绿色(Dark green)
	DFN-A-40	40	3200	95	橙色(Orange)

电流特性曲线图/

Current characteristic curve

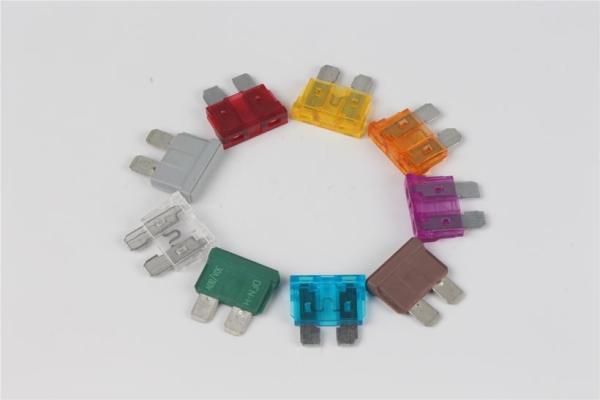

Car Battery Charger Low Voltage Fuses PBT Material 80V Rated Voltage

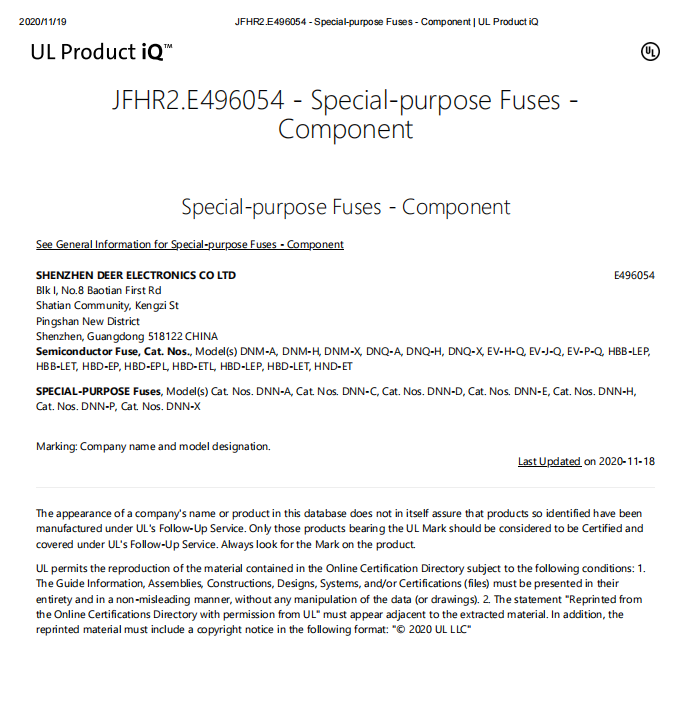

UL certificate:

Car Battery Charger Low Voltage Fuses PBT Material 80V Rated Voltage
