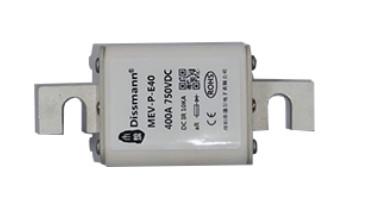

400A Semiconductor Fuses 750VDC Rated Voltage IEC60269 Standard

Name: 400A Semiconductor Fuses 750VDC Rated Voltage IEC60269 Standard
Brand: Dissmann
Price: 1 USD

400A Semiconductor Fuses 750VDC Rated Voltage IEC60269 Standard Manufactures

Brand Name : Dissmann

Model Number : MEV-P-E40

Certification : CCC

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : Ceramic

Colour : White

Rated Voltage : 750VDC

Rated Current : 400A

Breaking Capacity : DC10KA

Standard : UL248-13、ISO8820、 JASO-D622、IEC60269、ROHs

Usage : EV,Semiconductor protection,Charging pile

Keyword： : Semiconductor protection fuse

Contact Now

EV Fuse 400amps Fuse European Square Fuse Semiconductor Protection Fuse

Material:
Noumenon: Ceramic
Pins: Copper alloy

Features:

Automotive Cartridge Fuse
Many kinds of Automotive Cartridge Fuse
Current rating:400A
Voltage rating: 750VDC

Breaking capacity:DC10KA

Product Presentation:

Rated Voltage

DC750V,AC690V

or lower

Type Protection

Rated Current

40A-630A

Breaking Capacity

DC10KA

(time constant≤10ms)

Meet the Requirement

UL248-13,ISO8820,JASO-D622,IEC60269

EU and RoHS Directive

Remarks

—

Overall dimensions of the product(mm)

Product type:

Model	Product code	Rated current (A)	I²t(A²Sec)		Power consumption (W)
Model	Product code	Rated current (A)	Pre-Arc	After-Arc	Power consumption (W)
MEV-P-E40	MEV-P-E40-40	40A	40	270	9
	MEV-P-E40-50	50A	77	515	11
	MEV-P-E40-63	63A	115	770	14
	MEV-P-E40-80	80A	185	1250	18
	MEV-P-E40-100	100A	360	2450	21
	MEV-P-E40-125	125A	550	3700	26
	MEV-P-E40-160	160A	1100	7500	30
	MEV-P-E40-200	200A	2200	15000	35
	MEV-P-E40-250	250A	4200	28500	40
	MEV-P-E40-315	315A	7000	46500	50
	MEV-P-E40-350	350A	10000	68500	55
	MEV-P-E40-400	400A	15000	105000	60
	MEV-P-E40-450	450A	21000	140000	65
	MEV-P-E40-500	500A	27000	180000	70
	MEV-P-E40-550	550A	34000	230000	75
	MEV-P-E40-630	630A	48500	325000	80
